REEFA

RESPONSIBLE ECONOMICAL ENVIRONMENTAL FERTILIZER APPLICATOR

Place fertilizer and Confidor Guard to your desired level underground, consistently. Suitable for all soil types including red soil. View detailed information in the REEFA product brochure.

Frame



Constructed from heavy wall rectangular hollow section



Design can cater for stool splitting or side dressing simply by readjusting the center clamp position and adding an extra coulter hanger



Frame can be raised and lowered from both the front and rear, to allow for the various angles each soil type



Infinite operating depth and angle adjustments are achieved by simply turning the threaded height adjustment arm



Toolbar extends telescopically and is activated and positioned by hydraulic cylinder for multiple row width spacing’s (1.53 meters to 1.83 meters)



Draws in for road travel



Single bar drawbar with dual swivel enables full oscillation and achieves right angle turns on row entry and exit



Drawbar is mounted by Category 2 three-point linkage point enabling unit to be drawn by either option



Raising or lowering the machine when turning or travelling will not affect the pre-set operating height position



Clamp adjust wheel spacing to suit various row configurations



Reinforced rims




COULTERS

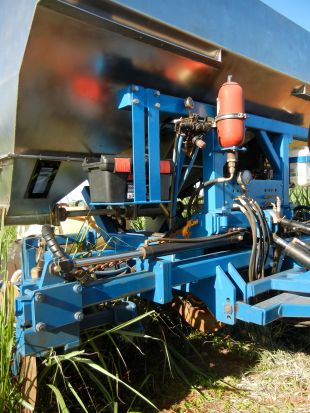

Coulters are mounted on a parallelogram linkage and activated by a hydraulic accumulator to maintain a regular depth over irregular terrain



Rise over obstructions and minimize disc damage



Coulters can be drawn upward without raising the frame to maximize ground clearance



Coulter hangers are designed for 760mm discs with tynes easily adjusted from both horizontal and vertical points to match disc arc



Long stainless steel dispersion boxes make placement of fertilizer and Confidor Guard to your desired level underground easy



Adjusting plates are cut from 20mm plate



Minimal deflection during operation



Working depth is adjustable from 75mm to 180mm













 View detailed information in the REEFA product brochure.



Download here



















FERTILIZER BIN



Bin is constructed from 4mm stainless steel for strength and durability



Metering chambers are constructed from 3mm stainless steel to reduce weight



Sharp side angles and equal metering chambers empty easily and completely



Can be reduced to less than 3.5 meters wide for road travel



Metering chambers are flange mounted and bolted to the bin



Change dispersion configurations without replacing the whole bin



Dual 90mm spiral conveyers (worms)



Uniform fertilizer flow and placement



Toughened glass windows fitted to each metering chamber



View low levels from the tractor seat



Hydraulically activated top cover to safeguard contents from moisture (optional)



Bolted metering tubes and drop chutes are easily removed for maintenance



Conveyor bearings machined from stainless steel with a bronze sleeve



Wheel driven or rate controlled

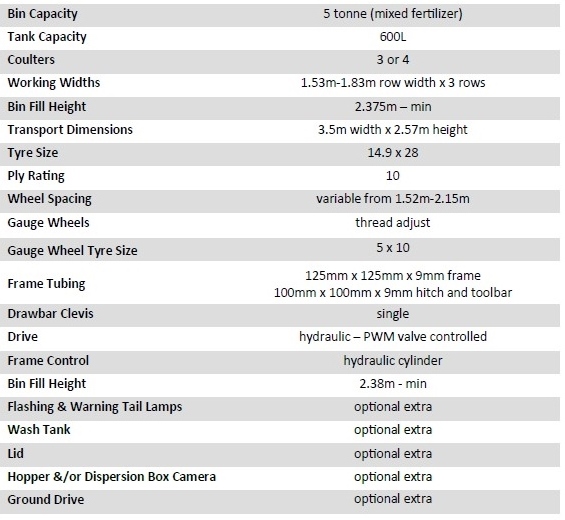

Specifications













“With REEFA, we can sleep better at night knowing that we don't have as many losses and the fertilizer is placed exactly where our plant needs it most.”
