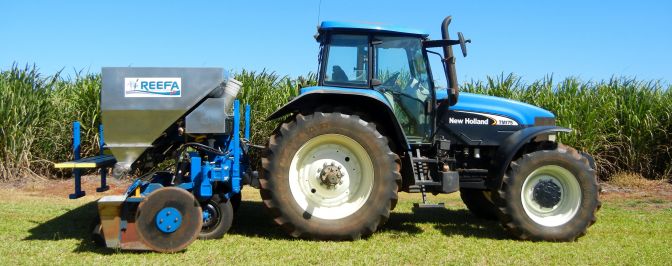

REEFA LITE

ECONOMIC ENVIRONMENTALLY FRIENDLY LINKAGE MOUNTED FERTILIZING

All the benefits of REEFA, the large machine, condensed in size to suit the smaller grower. Suitable for all soil types including red soil. View detailed information in the REEFA Lite product brochure.

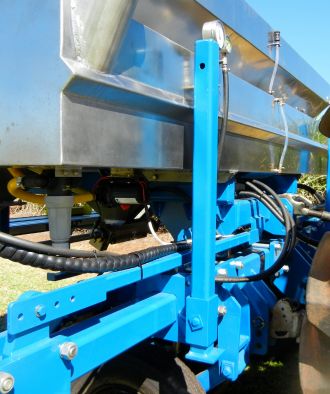

FRAME

Constructed from heavy wall rectangular hollow section

Design can cater for stool splitting or side dressing simply by readjusting the center clamp position and adding an extra coulter hanger

Frame can be raised and lowered by tractor linkage - the various angles requried in each soil type can be achieved by adjusting the top linkage arm

Infinite operating depth adjustments are achieved by simply turning the threaded height adjustment arm

Toolbar extends telescopically and is activated and positioned by hydraulic cylinder for multiple row width spacing’s (1.53 meters to 1.83 meters)

Draws in for road travel

Category 2 linkage fittings for three-point linkage hook up

Raising or lowering the machine when turning or travelling will not affect the pre-set operating height position

Clamp adjust wheel spacing to suit various row configurations

COULTERS

Coulters are mounted on a parallelogram linkage and activated by a hydraulic accumulator to maintain a regular depth over irregular terrain

Rise over obstructions and minimize disc damage

Coulters can be drawn upward without raising the frame to maximize ground clearance

Coulter hangers are designed for 760mm discs with tynes easily adjusted from both horizontal and vertical points to match disc arc

Long stainless steel dispersion boxes make placement of fertilizer and Confidor Guard to your desired level underground easy

Adjusting plates are cut from 20mm plate

Minimal deflection during operation

Working depth is adjustable from 75mm to 180mm

 View detailed information in the REEFA Lite product brochure.

Download here

FERTILIZER BIN

Bin and metering chambers are constructed from 2.5mm stainless steel

Fertilizer starts emptying from the rear of the bin to keep the bulk of the weight close to the tractor

Can be reduced to less than 3.5 meters wide for road travel

Metering chambers are flange mounted and bolted to the bin

Change dispersion configurations without replacing the whole bin

90mm spiral conveyers (worms)

Uniform fertilizer flow and placement

Heavy glass windows fitted to each metering chamber

View low levels from the tractor seat

Hydraulically activated top cover to safeguard contents from moisture (optional)

Bolted metering tubes and drop chutes are easily removed for maintenance

Conveyor bearings machined from stainless steel with a bronze sleeve

Wheel driven or rate controlled

SPECIFICATIONS
